AMP3060036L
The broadband amplifier module AMP3060036L is designed for low-distortion amplification of analog and digital modulated signals in the V/UHF range. This allows efficient systems to be implemented in the area of radio coverage for tunnels and complex buildings.
Due to the high bandwidth, the amplifier modules are suitable for the transmission of FM, DAB3, DVB-T as well as BOS and TETRA signals. All amplifiers of the AMP series are designed in 50 Ohms technology.
36 dBm | 4 W
Special Features
Due to the high output power in combination with the best linearity properties (IP3), the amplifier is suitable for professional applications in which digitally modulated signals need to be linearly amplified.
The AMP3060036L has an internal self-monitoring function for power consumption and module temperature. The status of the self-test can be queried via potential-free signal contacts.
An integrated high-pass filter suppresses unwanted signals in the lower frequency range. The amplifier has an internal reverse polarity protection for the operating voltage. The module is designed for mounting on an external heat sink.
Robust Design

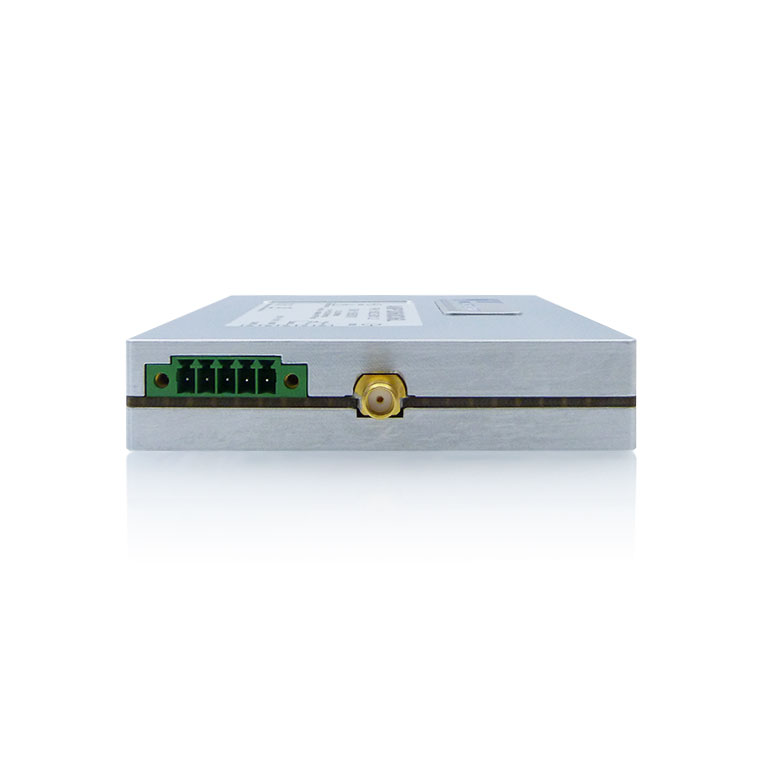

The amplifier module AMP3060036L is mounted in an aluminium housing. In addition to protection against mechanical damage, this offers the best shielding to suppress EMC influences from RF signals from the environment.
