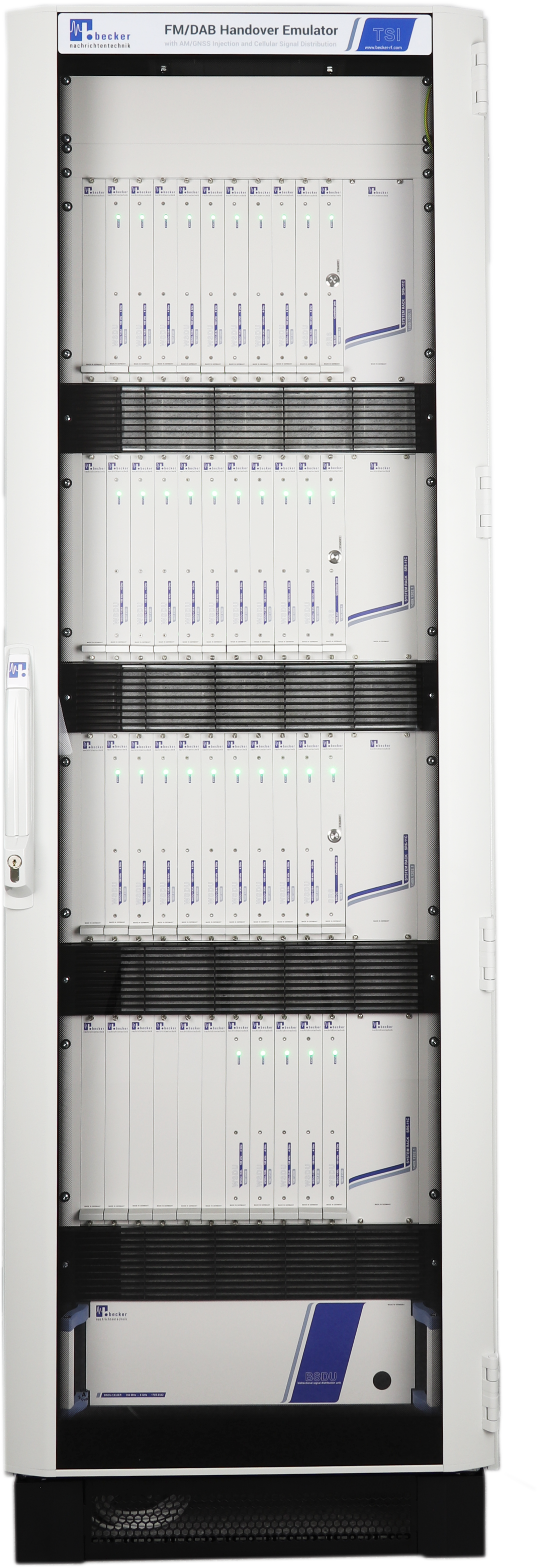

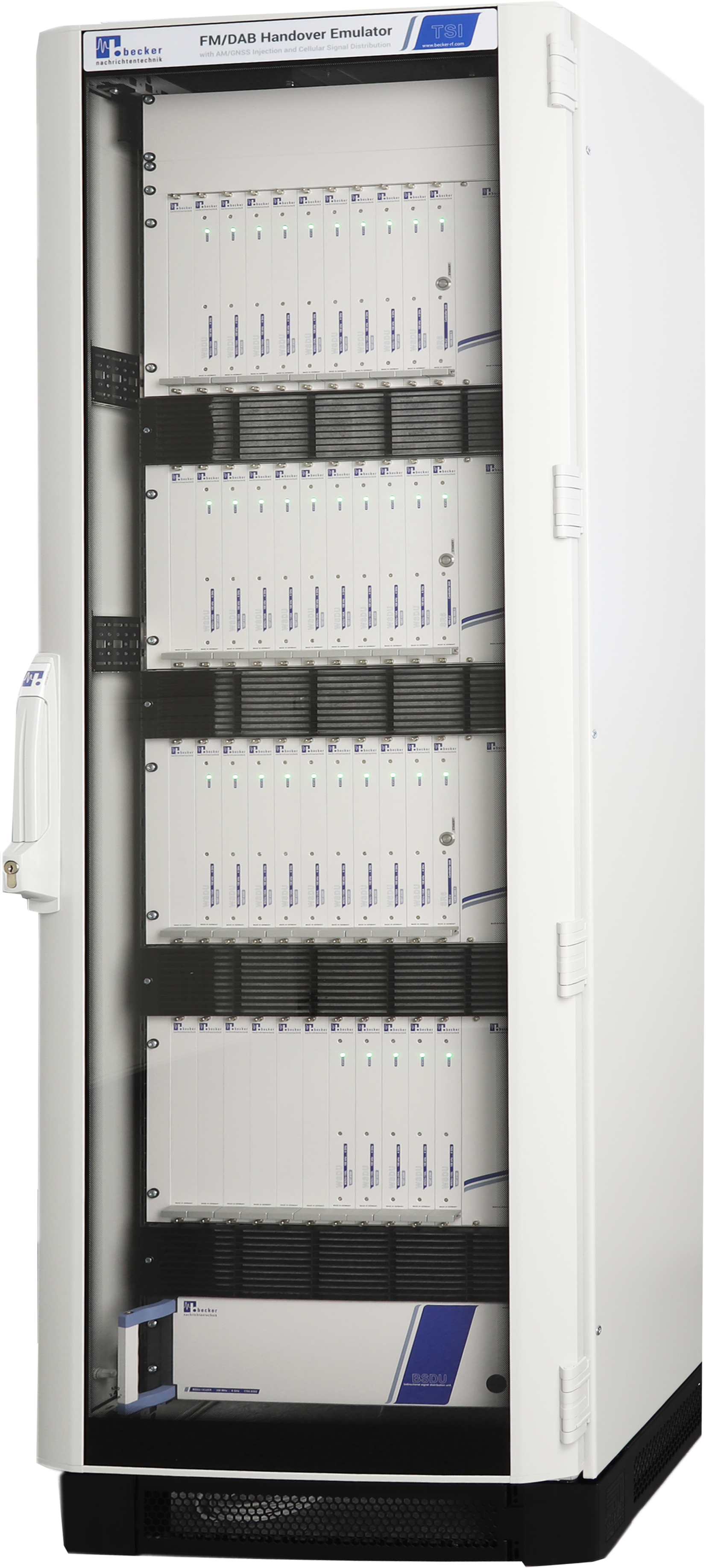

TSI-6X32H

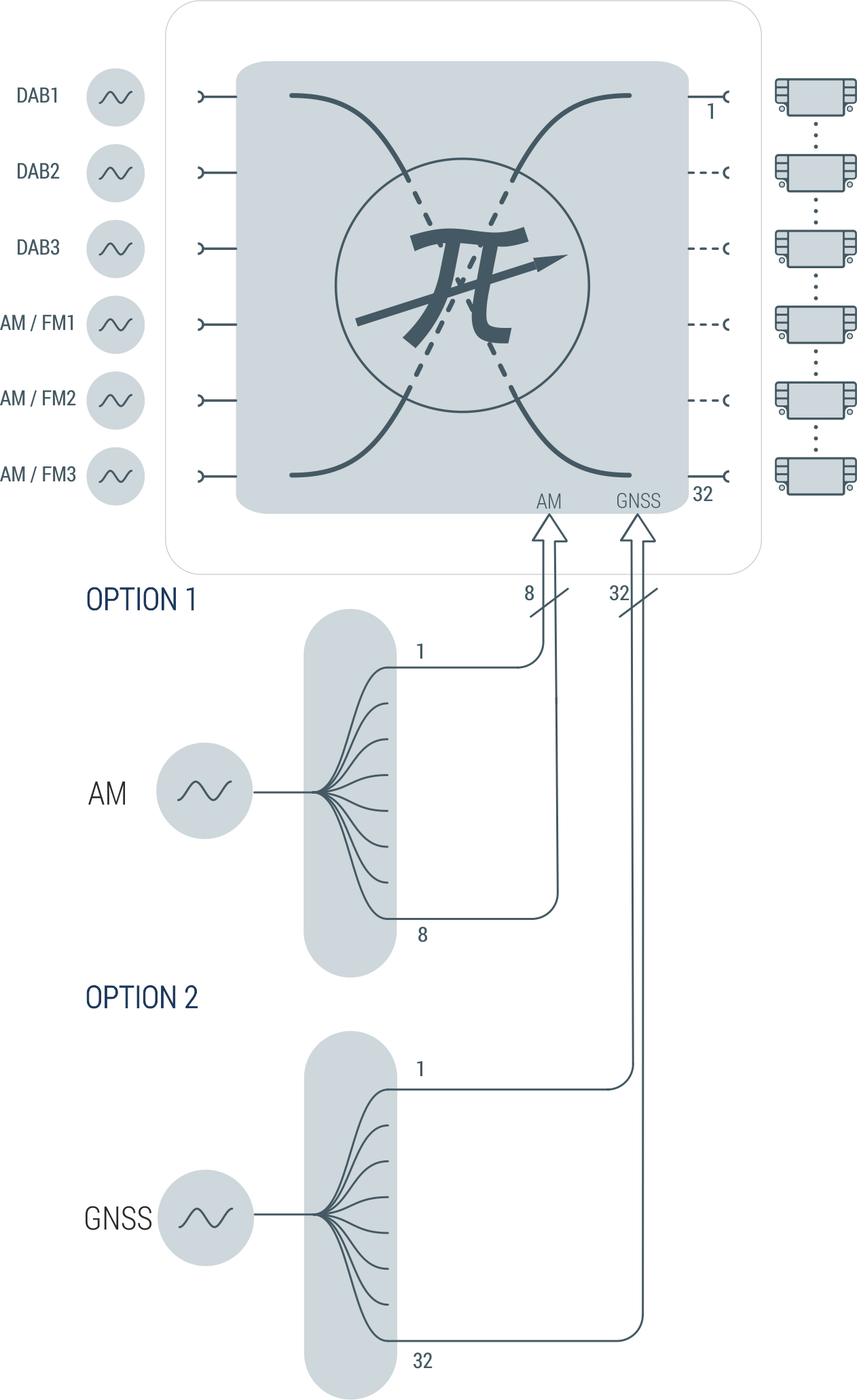

TSI-6X32H is a broadcast distribution infrastructure for large infotainment integration and verification laboratories. Connected to a set of up to 6 FM/DAB generators, every of up to 32 laboratory seats can be supplied with a composite RF signal that is individually composed of a programmable mix of the generator signals.
Applications
- car infotainment qualification
- product integration & verification
- AM, FM, DAB3, GNSS, Cellular signal distribution
High level dynamic
The system’s overall insertion loss is small. A set of 6 x 32 variable attenuators with an attenuation range of 80 dB are provided. The attenuators can be configured hundreds of times per second, so that real-time channel transition scenarios can be produced.
Versatile control
The TSI-6X32H can be controlled via LAN remote interface. Simple SCPI-inspired ASCII commands can be used by existing SW environments to control the system.
Optional the system offers a graphical user interface (GUI). All attenuator parameters and even transition scenarios can be set via the GUI quasi-simultaneously by all laboratory workers individually for their respective seats.
letzte Änderung: 01.02.2021
