RFLD-8RE

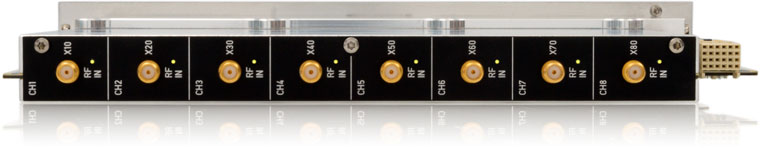

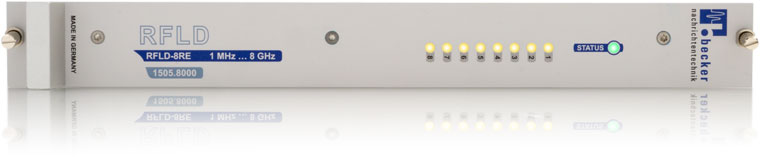

RFLD-8RE is an eight channel RMS RF level detection unit with high RF power capability in 50 Ohm technology. Each channel has a detection range of typical 0 dBm up to +36 dBm (1 mW…4 W). It is suitable for the frequency range 1 MHz … 8 GHz. It is fully specified for 20 MHz … 2700 MHz. Each channel is equipped with two Detector types, a True Power RMS detector and an envelope detector. Both detectors can be queried at the same time. The envelope detection has a peak hold circuit. The peak hold circuit will be reset after each request by software. LEDs on the front- and rear panel are indicating the presence of RF signals for each channel. Their threshold levels are settable by software.
Modular RF System Kit signal analysis RF level monitoring
High Accuracy
The RFLD-8RE offers high measurement accuracy. A correction table for RF level via frequency is implemented in the EEPROM of the module.
Multiple Remote Interfaces
The RFLD-8RE modules are queried and controlled by the complementary SR6-CU controller. The module data can then be read out via LAN and USB remote interface with SCPI-based ASCII commands. Larger systems, like TSQA-RFLD80K and TSQA-1X80PM offer an additional web interface GUI for straightforward integration into existing systems & networks.
Robust Design

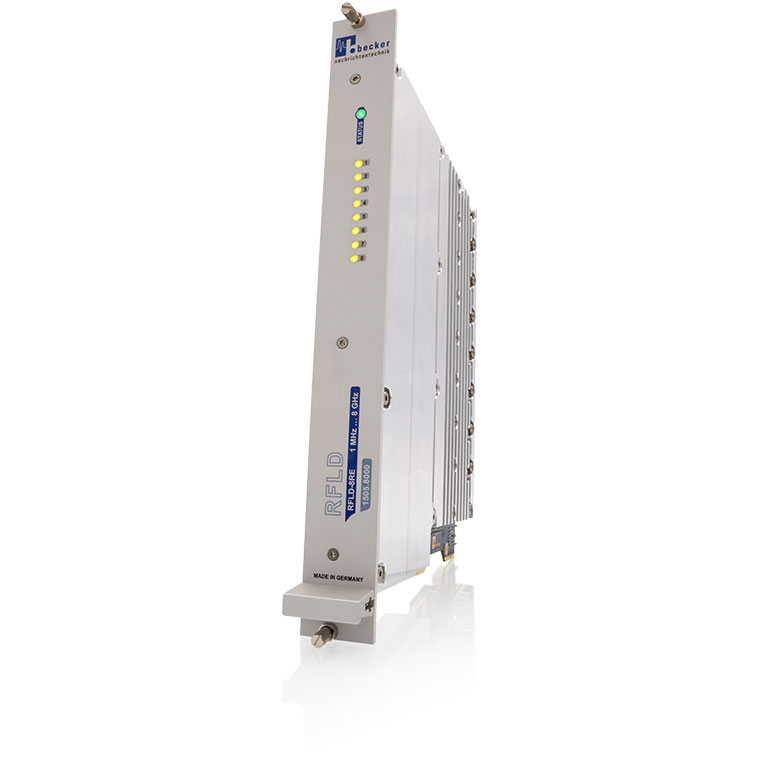

The compact module design allows combining up to 10 modules and a SR6-CU controller into one SR6-11C system platform. In power measurement applications (4 watts per channel) the fan unit FU-320 is required. Thus, up to 80 channels, each with full power capability can be realized in only 8 U.
HTOL Tests
In systems for High Temperature Operating Lifetime (HTOL) RF tests, the RFLD-8RE can measure the output levels of DUTs in an automatic process over a high amount of channels. This saves time and money during the test phase.
